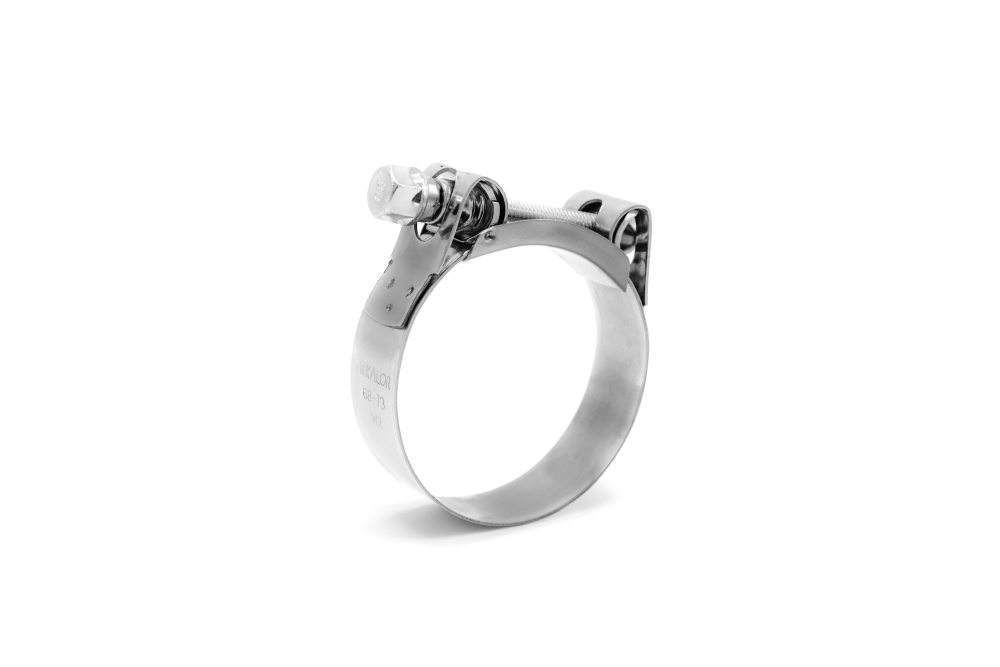

Thanks to it´s swivelling bridge the Supra W2 can be mounted in the most difficult applications without having to remove the hose. It can be opened and fastened again when in place without loosing any other parts of the clamp, making assembly much easier.
The high-strength bolt designed and manufactured by Mikalor specifically for this clamp, together with the captive nut and spacer system allow you to clamp the most demanding of hose assemblies. This is the clamp of choice for professionals in the industrial hose, automotive and agricultural machinery sectors as well as in all industrial applications where an outstanding and above all reliable heavy-duty clamp is required.The Supra W2 clamp complies fully with the directive EU 20032/95/EC.
(*) It is recommended to apply up to 75% of the maximum values contained in the table.
(**) The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.
Important! To choose correct clamp size, control that the hose outer diameter are within the clamping range specified in table.
|Clamping range:||55-59 mm|
|Fits do88 silicone hose with inner diameter:||48 mm|
|Hexagon head screw:||10 mm|
|Max thightening torque:||16 Nm (*)|
|Max pressure:||36 bar (*) (**)|
|Material:|| Band and bridge, Stainless steel (X6CR17 AISI-430) |
Screw, Steel quality Qst 34-3 (DIN 1.0213) 8.8 grade steel
|Corrosion resistance:||72 hours salt spray (ASTM B-117)|
